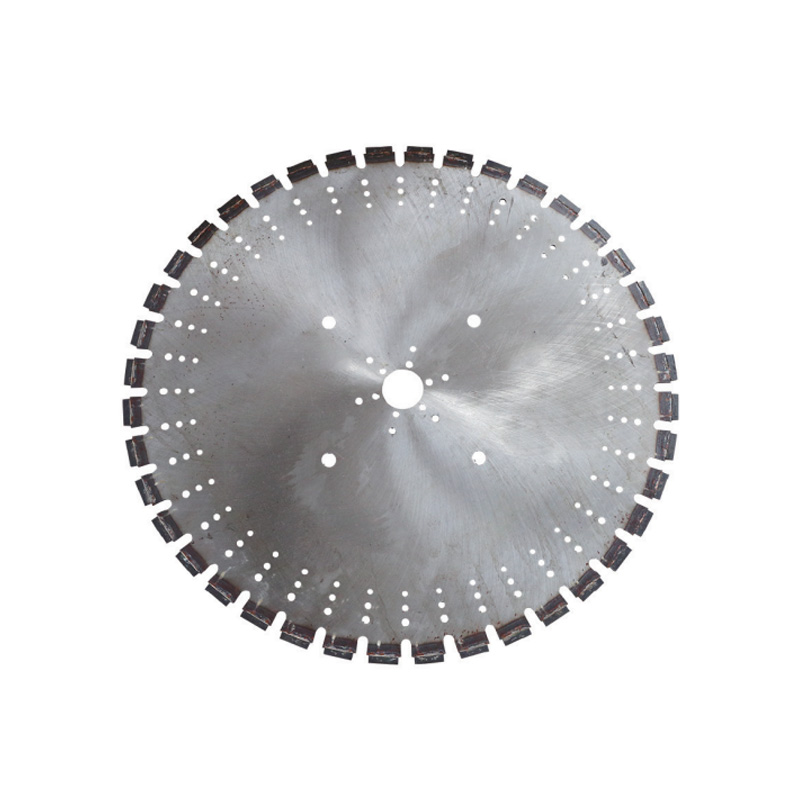

Diamond Wall Saw & Road Saw Blades
This diamond blade series covers wall saw and road saw cutting applications, with standard blade diameters from 300 mm to 1400 mm. The standard bore diameter is 60 mm. Blade core thickness, segment specification and segment quantity vary by blade diameter. Blade selection should be confirmed according to the saw machine, cutting material and required diameter.
Applications & Machine Compatibility
Select the blade according to the cutting material, required blade diameter and the specifications supported by your saw machine.
Typical Applications
- Wall saw cutting
- Road saw cutting
- Concrete cutting
- Road and pavement cutting
Check Before Ordering
- Maximum blade diameter supported by the machine
- Bore / arbor size
- Flange or mounting configuration
- Saw machine type and model
- Actual cutting material and working conditions
Available Sizes & Specifications
The following table lists the standard blade sizes and corresponding specifications for this product series.
| Blade Diameter | Bore Diameter | Blade Core Thickness | Segment Specification | No. of Segments |
|---|---|---|---|---|
| 300 mm | 60 mm | 3 mm | 12 × 3.0 × 21T | 21 pcs |
| 350 mm | 60 mm | 3 mm | 12 × 3.2 × 24T | 24 pcs |
| 400 mm | 60 mm | 3 mm | 12 × 3.6 × 24T | 24 pcs |
| 450 mm | 60 mm | 3 mm | 15 × 3.8 × 32T | 32 pcs |
| 500 mm | 60 mm | 3 mm | 12 × 4.0 × 35T | 35 pcs |
| 600 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 36 pcs |
| 700 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 42 pcs |
| 800 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 46 pcs |
| 900 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 50 pcs |
| 1000 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 56 pcs |
| 1100 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 62 pcs |
| 1200 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 68 pcs |
| 1300 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 74 pcs |
| 1400 mm | 60 mm | 3.5 mm | 40 × 12 × 4.6 | 80 pcs |
Segment specifications vary by blade diameter. For 300–500 mm blade sizes, segment specifications are shown according to the current product data. Please confirm the required blade configuration when ordering. Final blade selection should also consider the cutting material and saw machine specification.
How to Select the Right Saw Blade
1. Confirm the Blade Diameter
Select a diameter that meets the cutting requirement and does not exceed the maximum blade size supported by your wall saw or road saw.
2. Check the Bore / Arbor Size
The standard specifications on this page use a 60 mm bore diameter. Confirm the arbor and flange / mounting configuration of your saw before ordering.
3. Confirm the Cutting Material
Specify the material to be cut, such as concrete, reinforced concrete, pavement or asphalt. Material details help us confirm the appropriate blade configuration for your application.
4. Confirm the Saw Machine
Provide the saw type, machine model, maximum supported blade diameter and arbor specification so the blade configuration can be checked before quotation.
Send us your saw model, required blade diameter, cutting material, bore / arbor size and mounting configuration for confirmation.
Custom Requirements & Request a Quote
The specifications above are standard options. If your project requires a different blade diameter, bore size, segment specification or other configuration, send us your requirements so we can confirm whether a suitable option is available.
For a faster and more accurate quotation, please provide:
- Required blade diameter
- Required quantity
- Cutting material
- Wall saw or road saw
- Saw machine model
- Bore / arbor size and mounting configuration
- Application and cutting conditions
- Destination country
Send us the above information and CAHARD will help confirm the suitable blade specification for your application before quotation.
Final product configuration and availability should be confirmed according to the quotation and order requirements.
