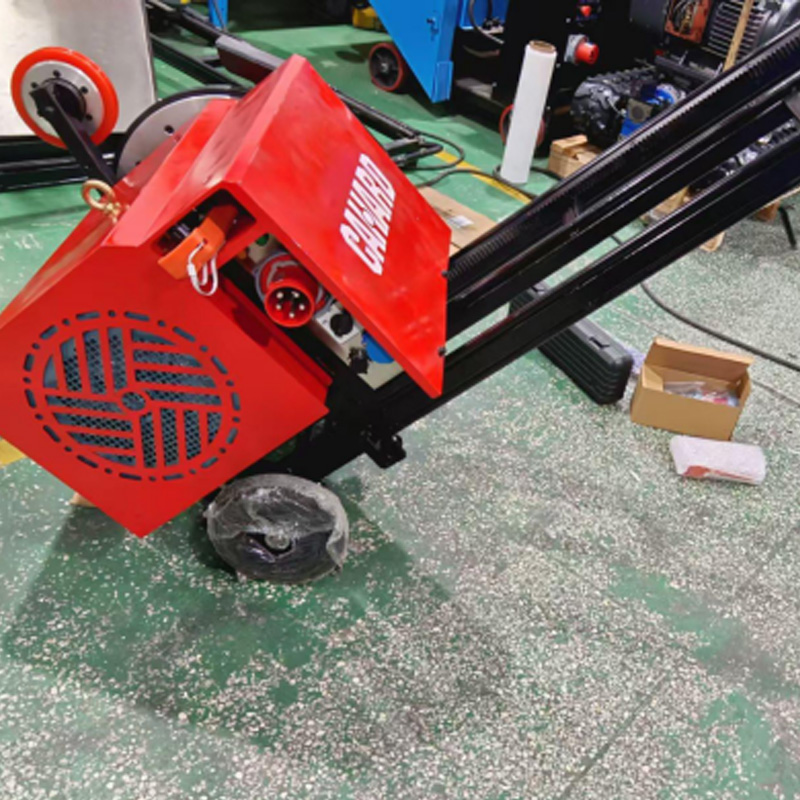

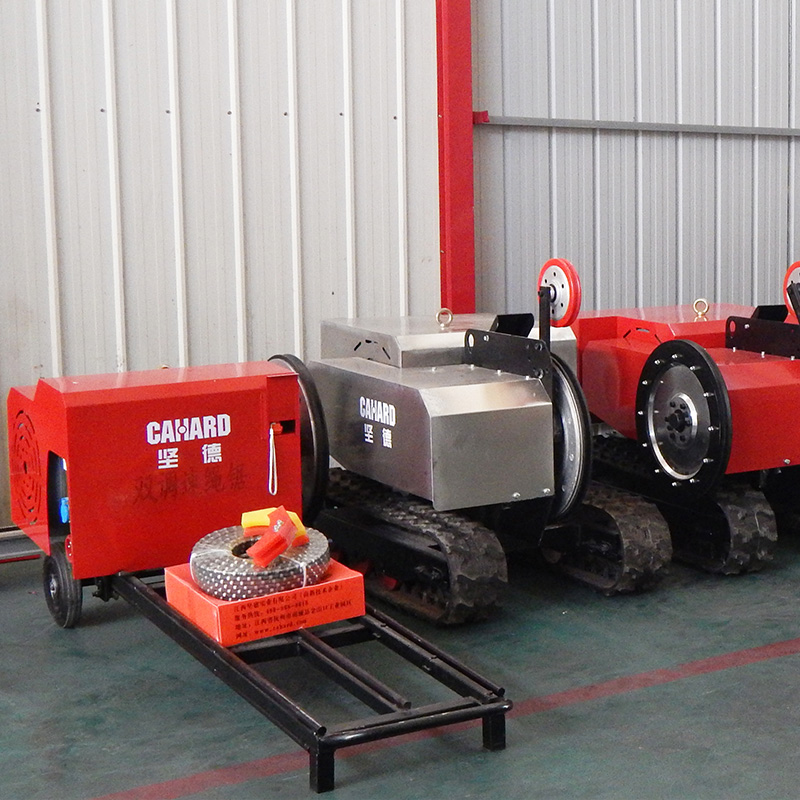

22KW Variable-Frequency Electric Wire Saw Machine for Reinforced Concrete Cutting
CAHARD 22KW variable-frequency electric wire saw machine is designed for reinforced concrete cutting, structural modification and demolition projects where adjustable main-drive speed is required.
The machine is equipped with a 22KW electric main drive, a maximum diamond wire linear speed of 25.5 m/s and a maximum 500 mm drive wheel. Wireless remote control allows the operator to manage the machine from a suitable working position during cutting.
The variable-frequency configuration provides adjustable main-drive speed for changing cutting conditions.
Variable-Speed Control for Different Cutting Conditions
The main-drive speed can be adjusted according to actual cutting requirements. This provides greater operating flexibility when working with different concrete strengths, reinforcement levels, structure dimensions and diamond wire configurations.
This model is suitable for contractors who prefer adjustable main-drive speed when working across varying reinforced concrete cutting conditions. For projects where fixed-speed operation is sufficient, a 22KW fixed-frequency wire saw model is also available.
Typical Applications & Project Fit
- Reinforced concrete wall cutting
- Concrete beam and column cutting
- Foundation and structural concrete cutting
- Building renovation and structural demolition
Final machine suitability depends on concrete strength, reinforcement level, structure dimensions, diamond wire specification and actual site conditions.
Technical Specifications
| Main Drive Power | 22 KW |
| Power Source | Electric |
| Spindle Output Speed | 975 rpm |
| Maximum Wire Linear Speed | 25.5 m/s |
| Maximum Drive Wheel Size | 500 mm |
| Voltage / Frequency | 380 V / 50 Hz |
| Power Cable Requirement | 10 mm² three-phase five-core cable |
| Control Method | Wireless remote control |
| Speed Control |
Main motor: adjustable speed Secondary motor: forward / reverse movement with stepless speed adjustment |
| Average Cutting Efficiency (Reference) | 3 m²/h |
| Machine Weight | 380 kg |
| Machine Dimensions | L1900 × W800 × H800 mm |
Standard Accessories
| Standard Accessory | Quantity |
|---|---|
| Wireless Remote Control | 1 pc |
| YQK240 Hydraulic Pliers | 1 pc |
| 24-inch Cutter | 1 pc |
| Explosion-Proof Plug | 1 pc |
Tell Us About Your Cutting Project
If you are selecting a variable-frequency wire saw machine for reinforced concrete cutting or demolition work, send us your project conditions. CAHARD can help you evaluate whether this 22KW configuration matches your cutting requirements.
Please provide the following information when possible:
- Material to be cut
- Concrete strength, if known
- Structure dimensions or concrete thickness
- Reinforcement level
- Available voltage and frequency
- Destination country / port
- Required quantity
If diamond wire is also required, please provide the cutting material and reinforcement details so we can recommend a suitable wire configuration.
Send us your cutting conditions to receive machine recommendations, product details and a quotation.
